JINGKE Fiber
Optical Cable
|
|
│ |
|
|
| With
High Performance, Dual Windowφ900 mm Optical Fibers |
 |
Applications:
◆ Pigtails an Patchcords
◆ Internal Equipment connections
◆ Cross Connect Patching
◆ Communications Closet Patch Panels
◆ Wall Outlet to Workstation Connection
◆ Runs from Active Closet to Intermediate Passive Cross-Connectors
Features:
◆ High performance SM and MM Fibers Meeting Industrial
Standards
◆ 900 mm Tight Buffer Coating Allowing Easy Connectorization
and Strippability
◆ Aramid Yarn Reinforcement for Rugged Protection
◆ Designed and Tested in Accordance with Bellcore GR-409-CORE
|
|
A test report (attenuation
at 1310/1550 nm for SM & 850/1300 nm for MM) is
supplied with each delivery
|
| Optical Fibers |
| Fiber Type |
Fiber Size, μm |
Wavelength, nm |
Attenuation, dB/km |
Bandwith, MHz·km |
N.A. |
| SMF-28 |
9 +
1
125 + 2 |
1310
1550 |
＜2.0
＜1.75 |
N/A. |
0.13 |
| MM50-125 |
50
+ 3
125 +2 |
850
1300 |
＜5.0
＜4.0 |
＞400
＞600 |
0.20 |
| MM62.5/125 |
62.5
+ 3
125 + 2 |
850
1300 |
＜5.0
＜3.0 |
＞200
＞600 |
0.275 |

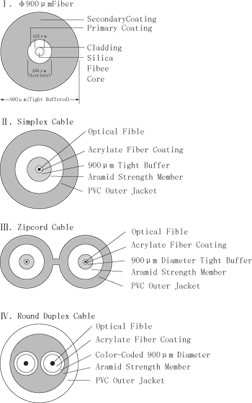

| Mechanical
Properties---Riser |
| Cable Type |
φ900 μm Fiber |
Simplex |
Zipcord |
Round Duplex |
| Fiber Unit |
1 |
1 |
2 |
2 |
| ΦCable, mm |
0.9 |
2.9 |
2.9×6.0 |
4.8 |
| Weight, kg/km |
1 |
9 |
18 |
18 |
